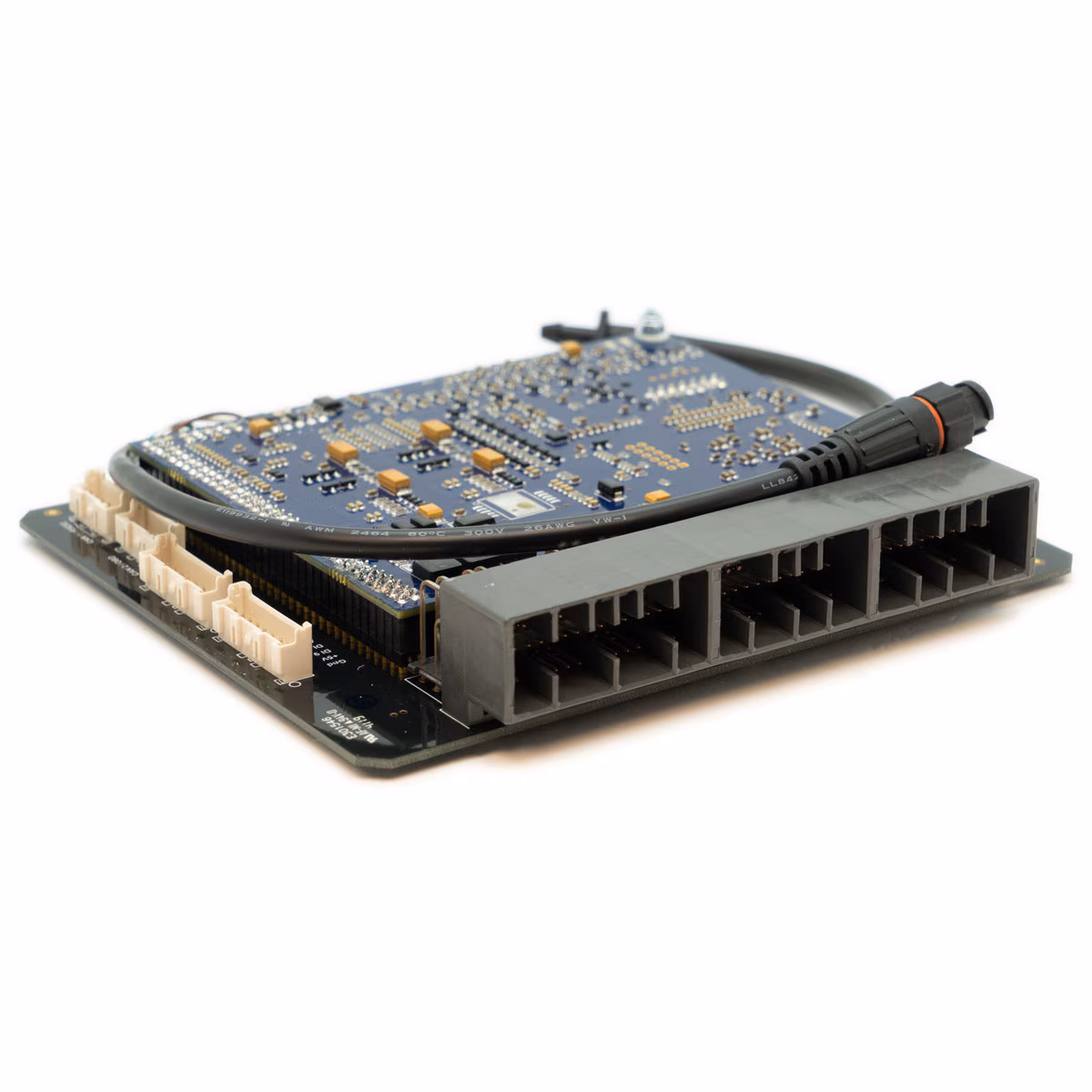

Mitsubishi EVO IX Link juhtaju

Kirjeldus

Lihtne paigaldada. Taskukohane. Usaldusväärne.

G4X PlugIn ECU-d pakuvad mootori juhtimise uusimat tehnoloogiat, mis on loodud teie auto potentsiaali hõlpsaks maksimeerimiseks.
See ECU sobib tehase OEM-i korpusesse. Paigaldamine on imelihtne, alltoodud mudelite puhul ei ole vaja tehase juhtmestikku muuta.

See ECU on mõeldud EVO 9 4G63 mootorile.

• Enne ostmist kontrollige, kas teie pistik vastab loetletud fotol olevale päisele.
• See ECU töötab ainult manuaalkäigukastiga.
• Sisaldab pardal olevat 7 bar MAP andurit
• Enamik tehase funktsioone on toetatud
• Kontrollige funktsioonide vahekaarti, et näha I/O laiendussuvandeid

Sobivad rakendused:

CT9A Lancer Evolution 9, 2005-2007

CT9A Lancer Evolution 8, 2003-2005 AINULT 3 pistikuga ECU-ga

Seda ECU-d vajavad ka kõik 3 pistikuga ECU-ga EVO8 autod.

PAIGALDUSJUHEND: EVO9X.pdf



• G4X PlugIn Key Features (where applicable):
• Up to 6D fuel and ignition mapping
• Precision closed loop cam control (four cam, independent control)
• Sequential fuel delivery
• Digital triggering, all OEM patterns
• OEM idle hardware supported
• 5D boost control with three switchable tables
• Motorsport features – antilag, launch, flat shift
• Continuous barometric correction (on board)
• CAN port
• QuickTune – automated fuel tuning
• Individual cylinder correction
• USB tuning cable included
• Stats recording into on-board memory
• Gear compensations for spark, boost and fuel
• Real time selectable dual fuel, ignition and boost maps
• Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
• Boost control referenced to gear, speed or throttle position
• 512 mega bytes data logging memory
• Staged injection
• Knock with “windowing”

I/O Expansion Options

The following expansion connector inputs/outputs are provided:

Expansion Connector 1:

•  Gnd                Sensor Ground Only
• +5V Out        Low Current +5V Supply
• DI 9                Digital Input
• DI 10                Digital Input
• Aux 11                Auxiliary Output
• An Volt 11        Analog 0-5V input
• An Volt 8        Analog 0-5V input
• An Temp 4        Temperature sensor input

Expansion Connector 2:

• Gnd               Sensor Ground Only
• +5V Out        Low Current +5V Supply
• Aux 9             EThrottle – can’t be used as an Aux out
• Aux 10            Auxiliary Output
• An Volt 6        Analog 0-5V input
• An Volt 7        Analog 0-5V input
• An Volt 9        Analog 0-5V input
• An Volt 10        Analog 0-5V input
